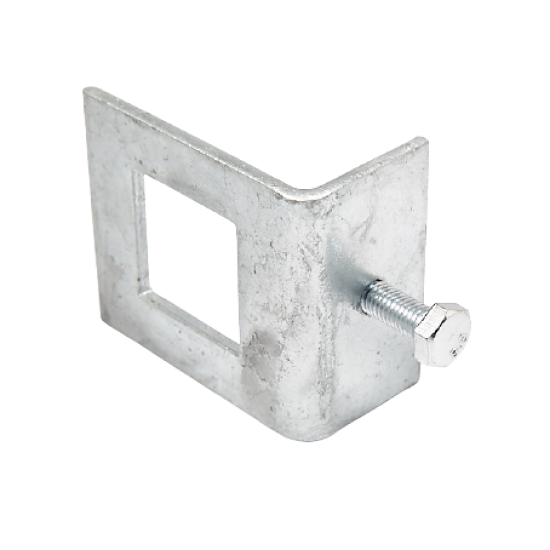

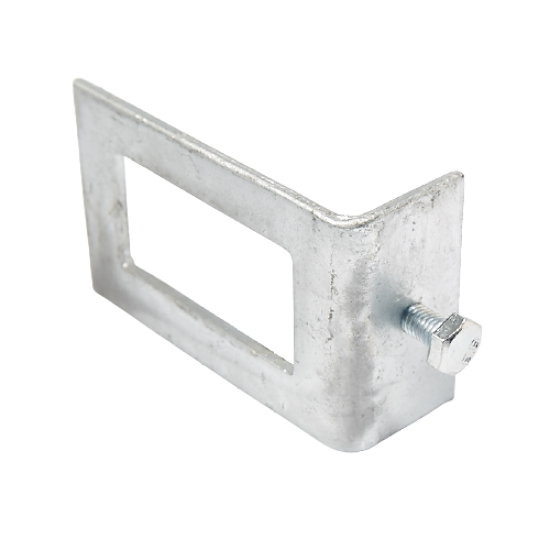

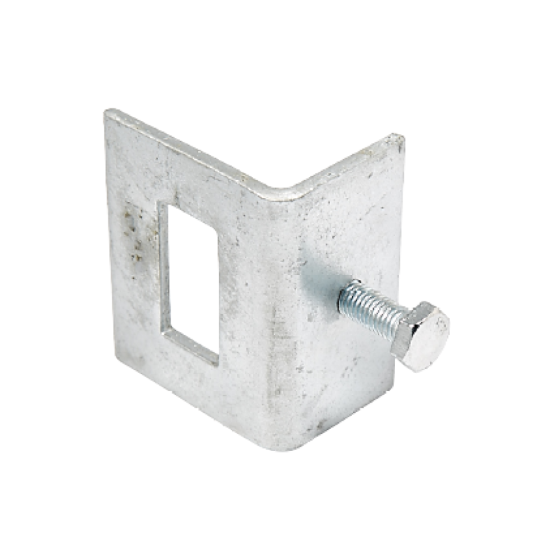

Window Brackets c/w Cone Points

Window Brackets with Cone Points are heavy-duty support brackets designed to provide reliable fixing points around window reveals, soffits, recessed edges, and structural offsets where direct fixing can be difficult or impractical.

 Manufactured from steel with a hot dipped galvanised (HDG) finish, these brackets offer excellent durability and corrosion resistance for demanding mechanical, electrical, and construction environments.

Available in multiple profile sizes including 41 x 21mm, 41 x 41mm, and 82 x 41mm, they are suitable for a wide range of support requirements ranging from compact service installations through to heavier-duty structural applications.

Key Features

• Hot dipped galvanised (HDG) finish for long-term corrosion protection
• Available in 41 x 21mm, 41 x 41mm, and 82 x 41mm profiles
• Integrated cone points for positive substrate engagement
• Suitable for light, medium, and heavy-duty support applications
• Compatible with standard channel systems, fixings, and support hardware
• Precision-punched fixing holes for fast and secure installation

In-Depth Description

Window Brackets with Cone Points are engineered to provide stable and dependable support where building services must be installed around structural openings, façade edges, soffits, or recessed areas. Their design allows installers to create intermediate fixing points where direct attachment to the primary structure may not be possible.

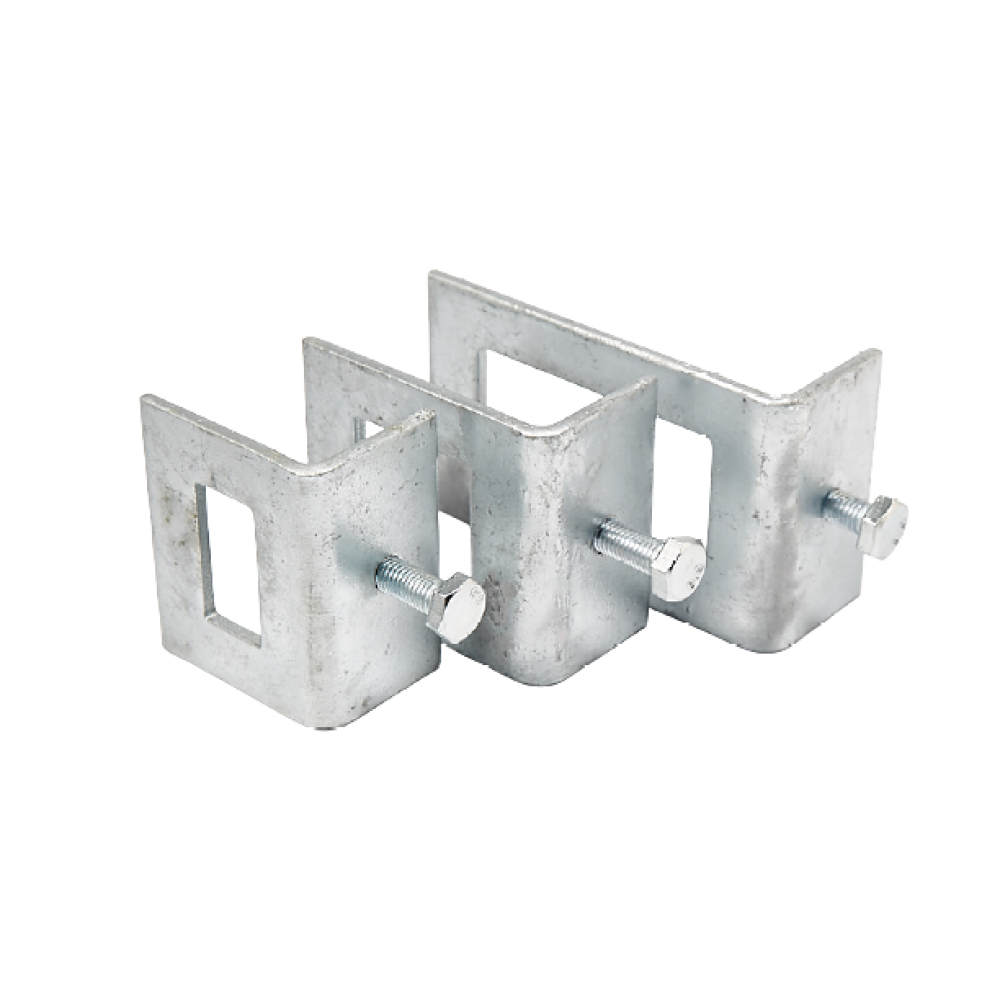

The range includes compact 41 x 21mm brackets for lighter-duty and restricted-space applications, versatile 41 x 41mm brackets for general-purpose service supports, and larger 82 x 41mm brackets for increased rigidity and higher load-bearing requirements. This variety allows the correct bracket profile to be selected based on installation demands and supported service loads.

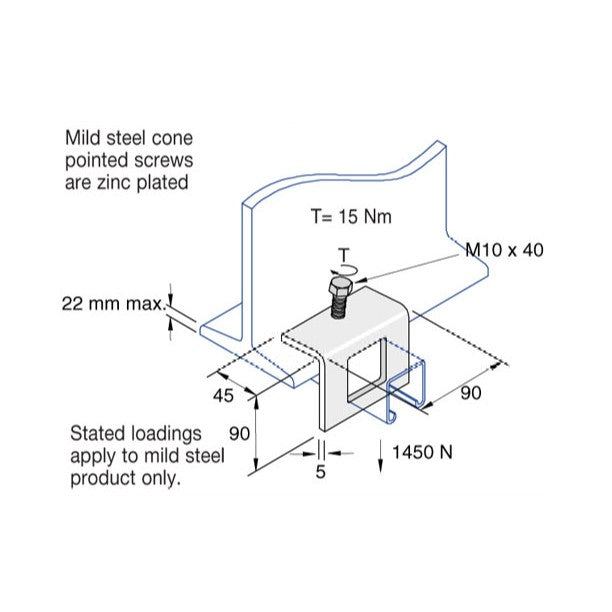

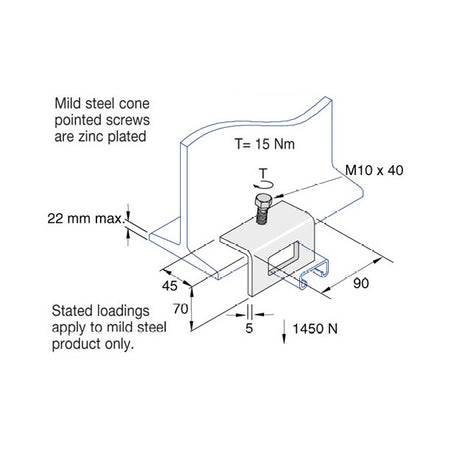

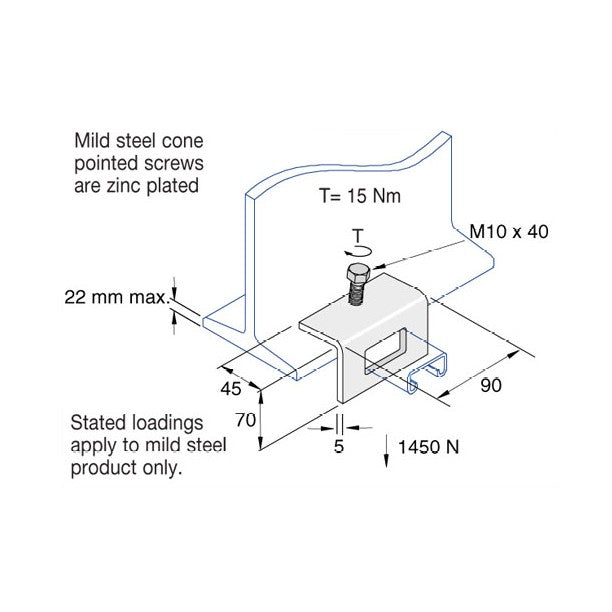

A key feature of these brackets is the inclusion of integrated cone points, which help locate the bracket during installation and improve mechanical engagement with the substrate. As the fixing is tightened, the cone points assist in resisting movement and slippage, helping to create a stable and secure connection point for downstream support systems.


Manufactured from steel and protected with a hot dipped galvanised (HDG) coating, the brackets benefit from a durable zinc finish that provides excellent resistance against corrosion in commercial, industrial, and sheltered external environments. This makes them well suited to plantrooms, warehouses, HVAC installations, service risers, and other demanding locations where long-term durability is important.


Precision-punched fixing holes accommodate standard bolts, screws, threaded rod assemblies, and channel fixings, allowing seamless integration with Unistrut systems, pipe clamps, cable tray supports, and general mechanical support hardware.

Typical Applications

• Supporting channel systems around window reveals and soffits
• Fixing pipework, conduit, and cable trays near structural openings
• Creating intermediate fixing points where direct fixing is impractical
• Supporting HVAC, mechanical, and electrical service installations
• Bridging offsets and recessed structural sections

Installation

Position the bracket at the required reveal, recess, or offset location and engage the cone points against the substrate. Secure using suitable fixings appropriate for the installation surface. Once tightened, the bracket provides a strong and reliable platform for attaching channels, support systems, pipework brackets, and associated hardware.

With their HDG corrosion protection, cone point engagement, and multiple profile options, Window Brackets provide a versatile and dependable solution for professional service support installations around structural openings and recessed areas.
