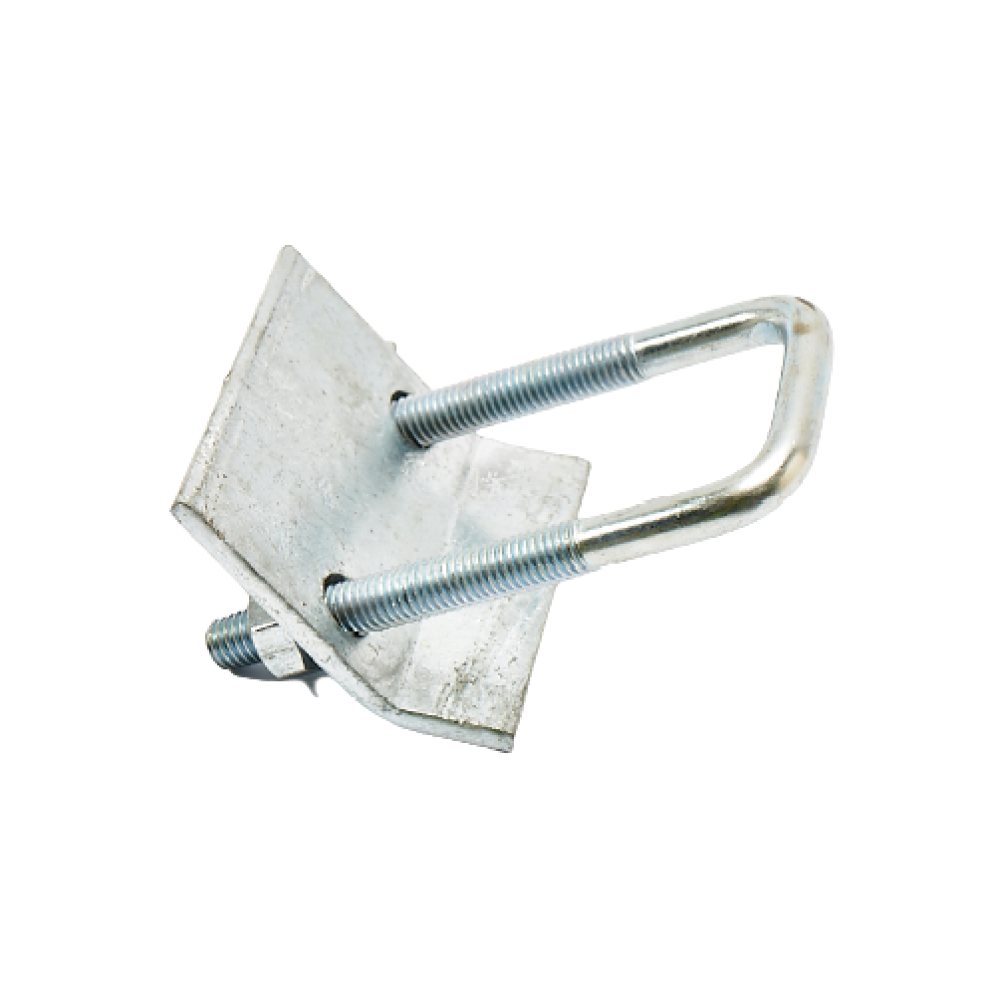

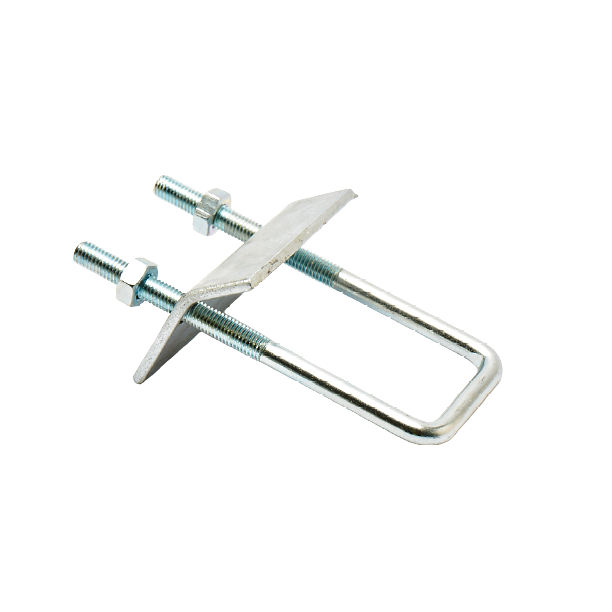

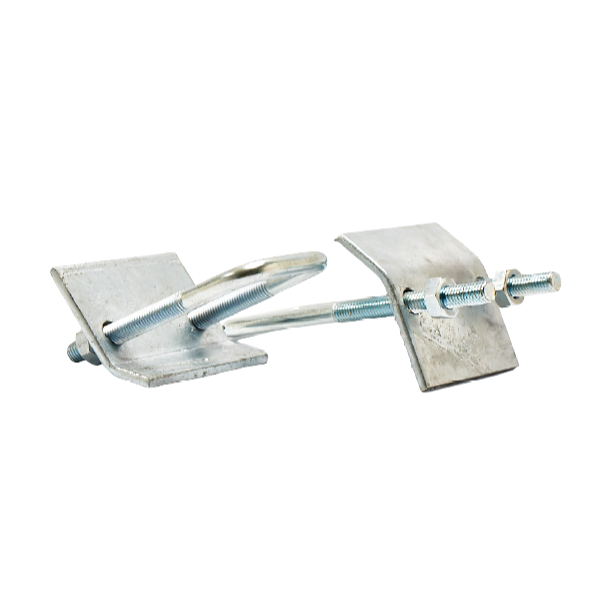

U Bolt Beam Clamp

The U Bolt Beam Clamps (82 mm / 41 mm) are robust beam fixing clamps engineered to provide a strong, non-welded anchor point on structural beams, channels, and girders.

Manufactured from hot-dip galvanised steel, they offer excellent durability and corrosion resistance, making them suitable for both internal and external installations. These clamps allow quick and secure attachment of threaded rod, brackets, or channel components.

Key Features

• Hot dip galvanised (HDG) finish for strong corrosion protection
• Designed for 82 mm and 41 mm channel/beam profiles
• Provides secure, non-welded fixing to structural steelwork
• Compatible with standard threaded rod and support accessories
• Suitable for a wide range of mechanical and electrical installations

In Depth Description

82 mm / 41 mm U Bolt Beam Clamps are designed to deliver a reliable and professional solution for fixing support systems directly to structural steelwork without welding or drilling. The U-bolt design wraps securely around beam flanges or channel profiles, creating a firm mechanical grip when tightened with nuts and washers. This ensures a stable, adjustable fixing point that can be repositioned or removed as required during installation or maintenance.

Manufactured from hot-dip galvanised steel, these beam clamps offer a durable protective coating that significantly improves resistance to corrosion in exposed or demanding environments. HDG is particularly well-suited to outdoor installations, industrial settings, plant rooms, and areas where moisture, humidity, or general atmospheric exposure may affect standard steel components. The galvanised coating provides long-term protection, making it a dependable choice for structural support applications.

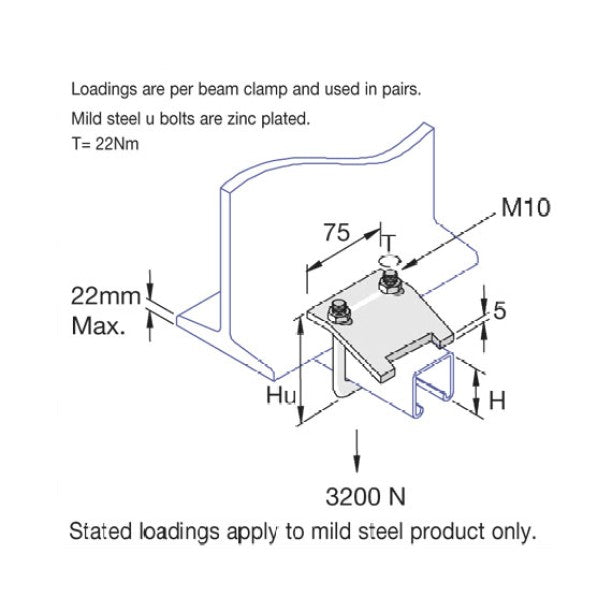

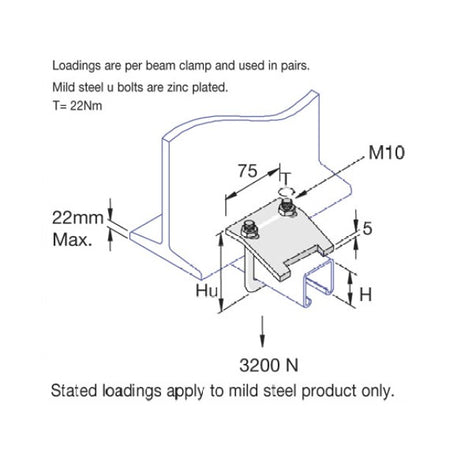

Available for 82 mm and 41 mm beam or channel profiles, the clamps are compatible with commonly used support systems across mechanical, electrical, plumbing, HVAC, and fire protection installations. Once fitted, the U bolt is positioned around the beam flange and secured using nuts and washers, creating a strong attachment point for threaded rod, channel sections, brackets, or suspension systems.


Typical applications include

• Supporting pipework and conduit systems from structural steel beams
• Fixing channel support systems to girders and steel frameworks
• Providing anchor points for mechanical and electrical suspension systems
• Attaching adjustable support brackets without welding or drilling


Installation is simple and adaptable: position the clamp over the beam flange, align with the required orientation, and tighten the fixings to secure the assembly. This creates a stable connection capable of resisting both vertical and lateral loads while still allowing for adjustment during setup.


With its robust construction and hot-dip galvanised finish, the 82 mm / 41 mm U Bolt Beam Clamp provides a durable, flexible, and cost-effective solution for structural support applications in a wide range of environments.
