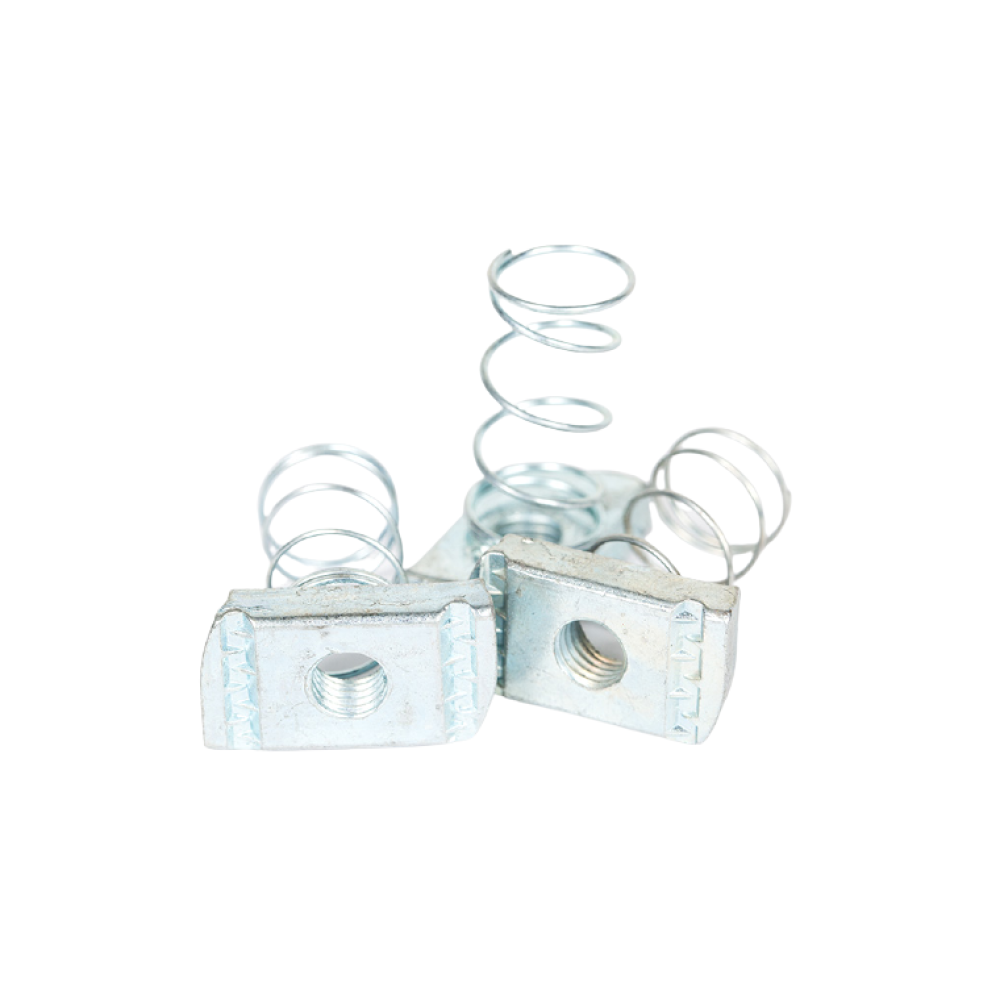

Long Spring Nuts

Long spring nuts are designed to slot into strut channel profiles, creating a secure threaded fixing point without the need for drilling or welding. The spring clip mechanism keeps the nut in place within the channel, allowing installers to position and adjust fixings quickly and efficiently.


The extended length of these nuts provides a greater contact area within the channel, improving stability and load handling compared to standard spring nuts. This makes them particularly suitable for heavier-duty applications or where enhanced fixing strength is required.


A range of finishes ensures suitability for different environments:
• BZP (Bright Zinc Plated): Cost-effective option for general indoor use
• HDG (Hot Dip Galvanised): Increased corrosion resistance for external or industrial environments
• Stainless Steel: Increased corrosion resistance for harsh or hygienic environments

Typical Applications

• Pipe support systems
• Cable tray and containment installations
• HVAC and mechanical services
• Suspended frameworks and trapeze brackets
• Industrial and plant room installations

Installation Guidance

• Insert the spring nut into the channel slot
• Rotate 90° to lock into position
• Slide to required location within the channel
• Insert threaded rod or bolt and tighten to secure
• Ensure correct torque is applied based on application

Key Benefits

• Fast and efficient installation with no drilling required
• Provides adjustable fixing points within channel systems
• Strong, reliable connection for load-bearing applications
• Suitable for a wide range of environments and system types
