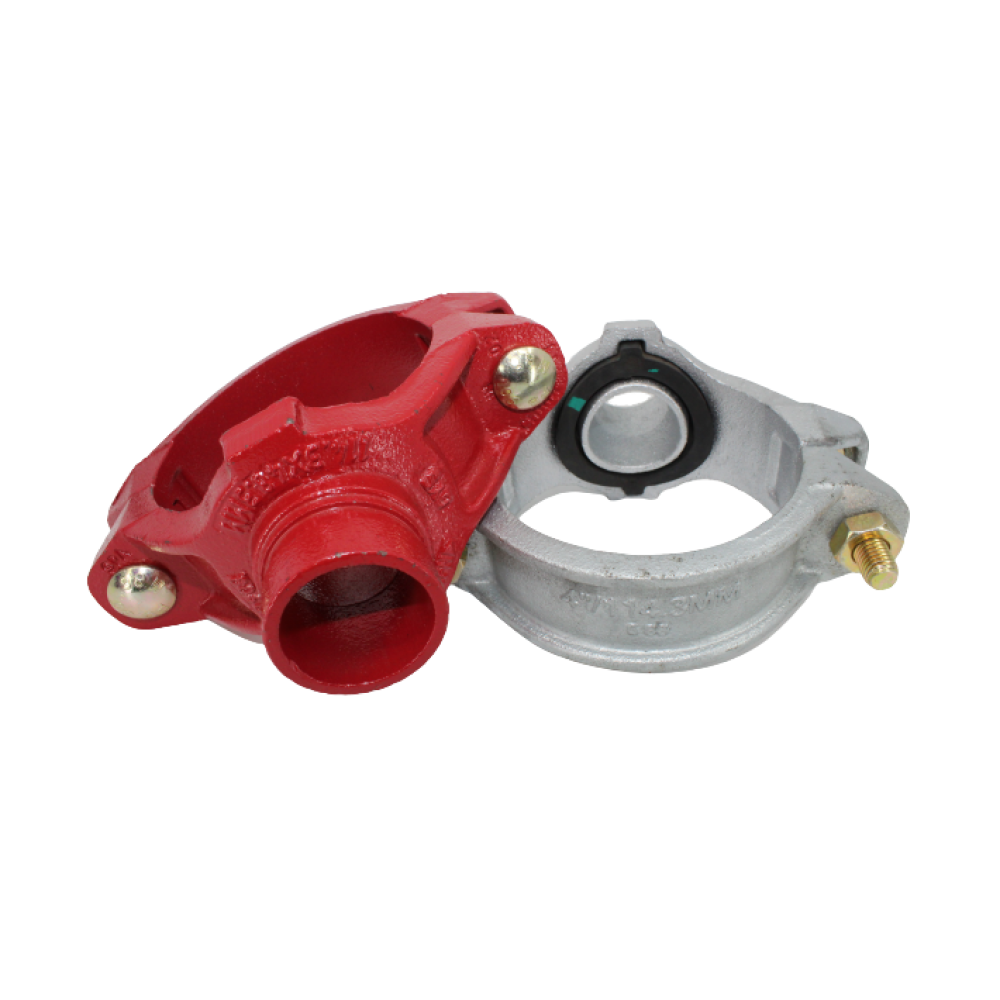

Gr8LOK 8046 Mech Tee - Grooved Outlet

The Mechanical Tee Grooved Outlet is a high-performance branch fitting designed to create a grooved outlet directly from an existing pipe without the need to install a full tee. Ideal for fire protection, HVAC, and mechanical services, it provides a fast, efficient solution for adding larger branch connections within grooved piping systems.

Manufactured from durable ductile iron, the mechanical tee is secured to the pipe using a bolted housing and gasket arrangement, forming a strong, pressure-responsive seal. A hole is cut into the pipe to create the outlet, allowing installation without removing or replacing pipe sections—making it particularly suitable for retrofit work, system extensions, and on-site modifications.


Supplied with a grooved outlet connection, this fitting enables direct integration into grooved systems, maintaining consistency across the installation while supporting efficient flow through the branch line.

Key Features

• Mechanical tee design – allows branch connections without cutting out pipe sections
• Grooved outlet connection for full compatibility with grooved systems
• Ductile iron construction for strength and durability
• Suitable for standard and thin wall pipe
• Working pressures up to 20.7 bar (300 PSI) depending on size and specification
• EPDM gasket sealing system for reliable, pressure-responsive leak resistance
• Available in red painted or galvanised finishes for corrosion protection
• FM Approved, UL Listed and internationally recognised approvals
• No hot works required, improving installation speed and site safety


Applications

• Fire sprinkler systems
• HVAC and chilled water systems
• Mechanical and industrial pipework
• System extensions and retrofit installations


Designed for speed, flexibility, and system compatibility, the mechanical tee with grooved outlet provides an efficient method of adding branch connections while maintaining the integrity and performance of grooved piping systems.
