FM Approved Sikla Toggles

Silka Toggles provide a reliable and adjustable solution for fixing the threaded rod directly to the trapezoidal corrugated sheet. Designed for use in safety-critical installations, including fire protection systems, they offer a secure anchoring point while maintaining the integrity of the sheet material.


Engineered in accordance with recognised industry standards, these toggles are widely used for suspending pipework and building services where certified performance and reliability are essential.

Key Features

• Designed for use with trapezoidal corrugated sheet
• Suitable for suspension of pipework and building services
• Height adjustable via threaded rod for precise positioning
• Threaded rod is secured to prevent full disengagement
• Supplied with weather-resistant sealing washer
• Suitable for safety-critical applications including sprinkler systems

Product Description

Silka Toggles are engineered to provide a dependable fixing solution for suspending services from trapezoidal sheet structures. The system operates by inserting the toggle through a pre-formed hole in the sheet, where it engages and locks into position, creating a secure anchor point for threaded rod assemblies.

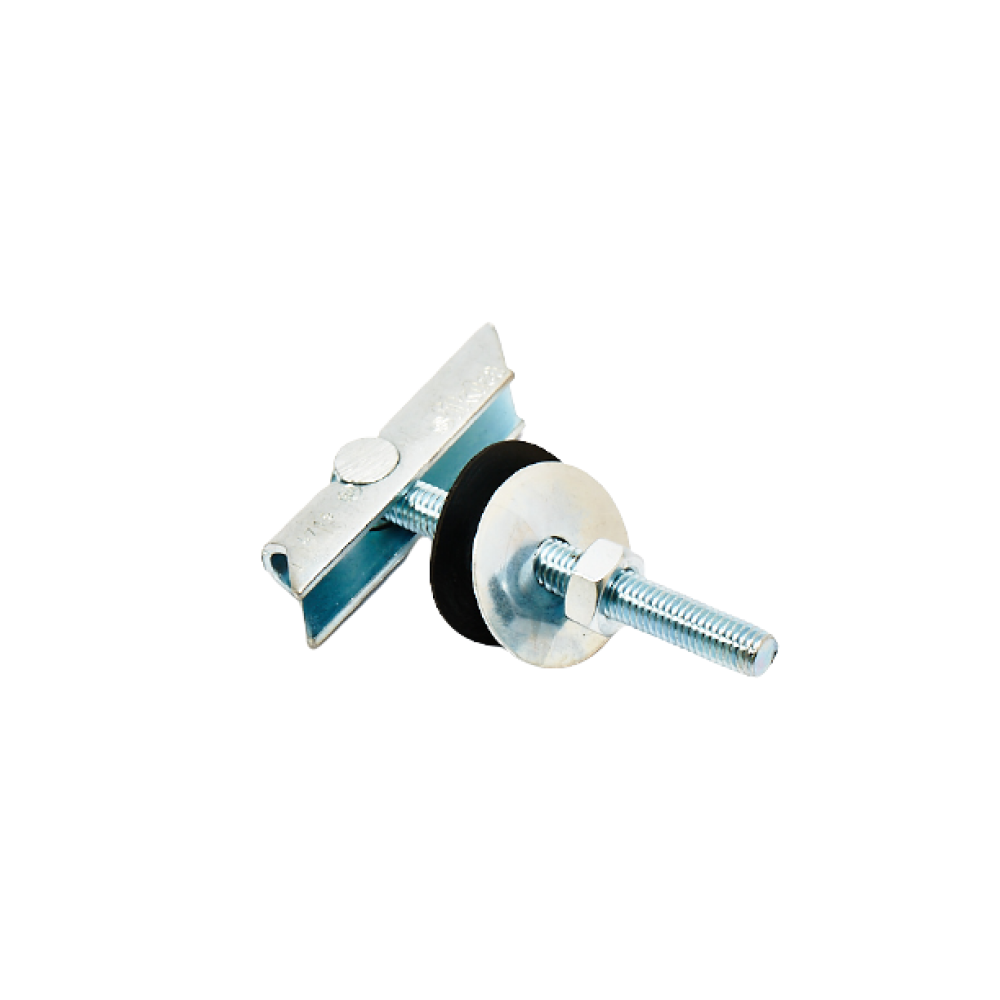

Each unit is manufactured from electro-galvanised steel and incorporates an elastomer gasket with a Hypalon washer. This washer provides effective sealing of the installation hole, offering resistance to weathering and helping to prevent moisture ingress—an important safety feature in exposed or regulated environments.


The threaded rod design allows for straightforward height adjustment during installation, enabling accurate positioning of suspended services such as pipework, cable containment or ventilation systems. Once installed, the rod is secured to prevent it from being fully unscrewed, ensuring long-term stability and safety.


These toggles are particularly suited to fixing pipes up to a nominal bore of NB50 directly to trapezoidal sheet in accordance with VdS and FM standards. For applications outside of these standards, or where larger loads are required, multiple toggle fixings can be used in conjunction with crossbars to safely distribute the load.


With a nominal load capacity of 0.8 kN per fixing point, Silka Toggles offer a robust and compliant solution for a wide range of building services applications.

Installation

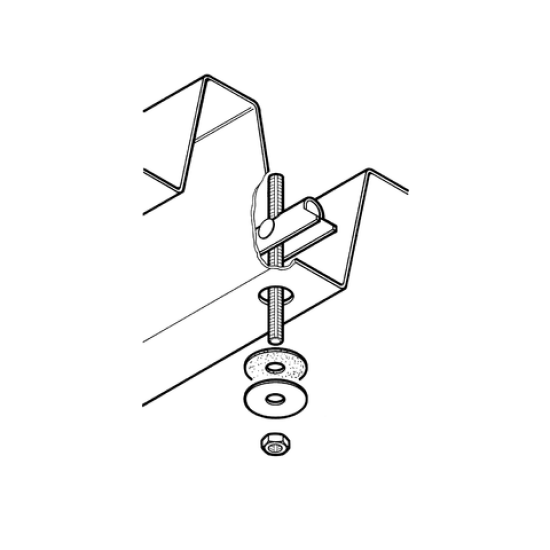

Installation requires a pre-drilled hole in the trapezoidal sheet using the appropriate hole saw: LS 22 for M8 and LS 25 for TD10. Once inserted, the toggle engages within the sheet and can be adjusted via the threaded rod before being secured in position.

Applications

Ideal for suspending pipework, sprinkler systems, ventilation and general building services from trapezoidal sheet roofing in commercial and industrial environments, particularly where certified, safety-compliant fixings are required.
