90 Deg Grooved GR8LOK 8050 Elbows

90° Grooved Elbows are mechanical pipe fittings used to change the direction of a grooved piping system by 90 degrees. They provide a compact, efficient solution for right-angle directional changes while maintaining a sealed, gasketed joint.

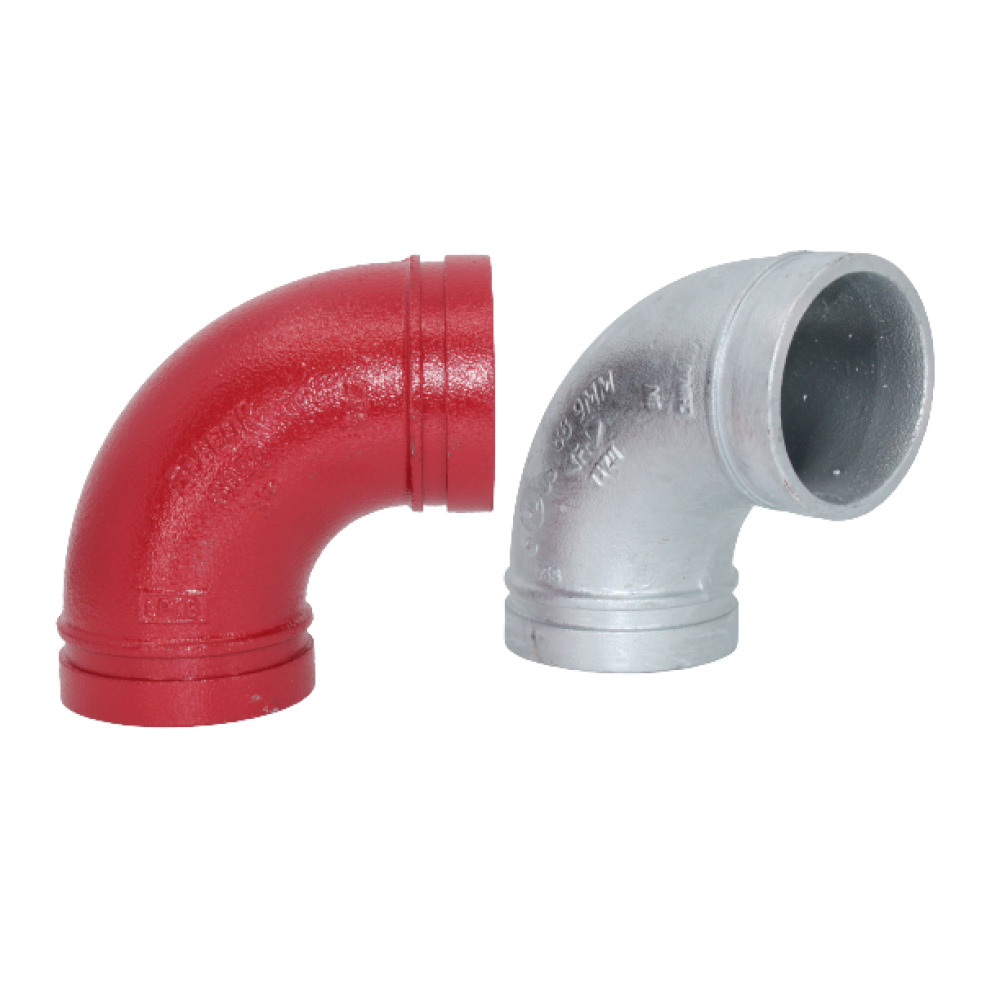

Manufactured from ductile iron and supplied in either red painted or hot dip galvanised finishes, they are widely used across fire protection, HVAC, water distribution and industrial piping systems where speed of installation and system reliability are essential.

Key Features

• 90° directional change for grooved systems
• Ductile iron construction for high strength and durability
• Quick installation using grooved coupling system
• Red oxide painted or hot dip galvanised finishes
• Designed for gasketed, leak-resistant sealing
• Suitable for fire protection and mechanical services
• Compatible with standard grooved pipe systems

Product Description

90° grooved elbows are designed to connect two grooved pipe ends at a right angle, allowing a clean directional change within a piping system without the need for welding or threading. The grooved connection method uses a rubber gasket seated between pipe ends and secured by a mechanical coupling housing, forming a reliable and pressure-resistant seal once tightened.


Manufactured from ductile iron, these fittings offer excellent mechanical strength and impact resistance, making them suitable for demanding service conditions including fire protection and industrial applications. Ductile iron provides a high strength-to-weight ratio and good durability under pressure and vibration.


Grooved systems are widely used because they significantly reduce installation time compared with welded or flanged systems, while also allowing easier maintenance and system modification. This makes them particularly valuable in large-scale mechanical and fire sprinkler installations where downtime must be minimised.


The fittings are typically finished in red oxide paint for fire protection applications and easy identification, or hot dip galvanised for improved corrosion resistance in external or more aggressive environments. This flexibility allows selection based on installation conditions and specification requirements.


Grooved 90° elbows are commonly specified in fire sprinkler systems, HVAC networks, chilled water systems and general industrial pipework where reliable right-angle flow changes are required.

Applications

Ideal for fire sprinkler systems, HVAC installations, chilled water systems, water distribution and industrial pipework where a fast-installed 90° directional change is required using grooved coupling technology.
