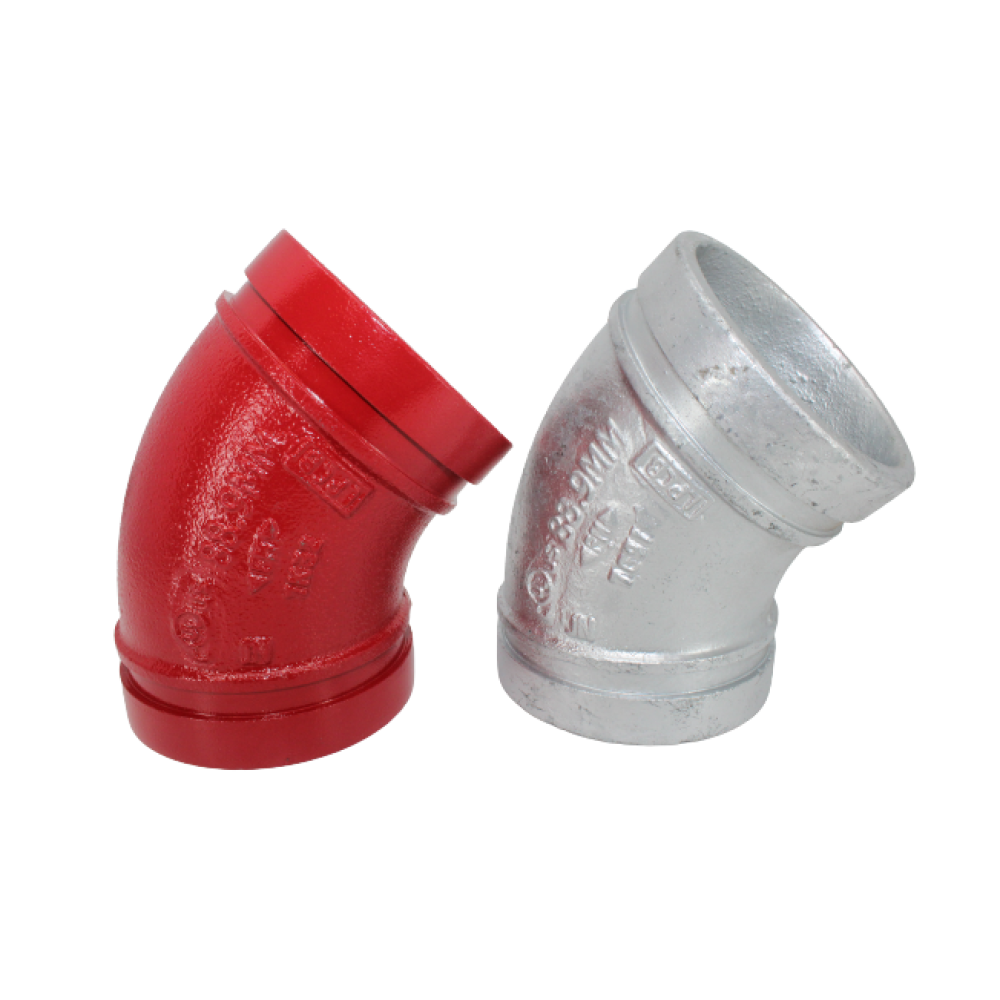

45 Deg Grooved GR8LOK 8051 Elbows

45° Grooved Elbows are mechanical pipe fittings used to change the direction of a grooved piping system by 45 degrees. They provide a smooth transition in flow direction while maintaining system integrity through a gasketed, clamp-based connection method.


Manufactured from ductile iron and supplied in either red-painted or hot-dip galvanised finishes, they are widely used in fire protection, HVAC, water distribution and industrial piping systems.

Key Features

 • 45° directional change for grooved systems
• Ductile iron construction for high strength and durability
• Quick installation using grooved coupling system
• Red oxide painted or hot dip galvanised finishes
• Suitable for fire protection and mechanical services
• Compatible with standard grooved pipe systems
• Designed for reliable gasketed sealing

Product Description

45° grooved elbows are designed to connect two grooved pipe ends at a 45-degree angle, allowing controlled directional changes within a pipeline while maintaining a continuous, sealed system. The grooved connection method uses a gasket and housing assembly, enabling fast installation without welding, threading or hot works.


Manufactured from ductile iron, these fittings provide excellent mechanical strength and impact resistance, making them suitable for high-demand applications. The material’s toughness ensures reliable performance under pressure, vibration and system movement.


The grooved ends are designed to work with standard mechanical couplings, where a rubber gasket is compressed between pipe ends to form a secure, leak-resistant seal. This system allows for some flexibility in alignment while maintaining structural integrity and pressure containment.


These fittings are commonly used in fire sprinkler systems, HVAC pipework, chilled water systems, industrial process lines and general mechanical installations. Their ability to reduce installation time and simplify maintenance makes them a preferred alternative to welded or threaded fittings in many applications.


Grooved elbows are typically available in red oxide paint for fire protection systems and visual identification, or hot dip galvanised finishes for enhanced corrosion resistance in external or more aggressive environments.

Applications

Ideal for fire sprinkler systems, HVAC installations, chilled water systems, industrial pipework and mechanical services where a fast-installed 45° directional change is required using grooved coupling technology.
